Drilling equipment

Heli-portable, skid-mounted and track-mounted hydraulic drills for remote exploration and geotechnical work.

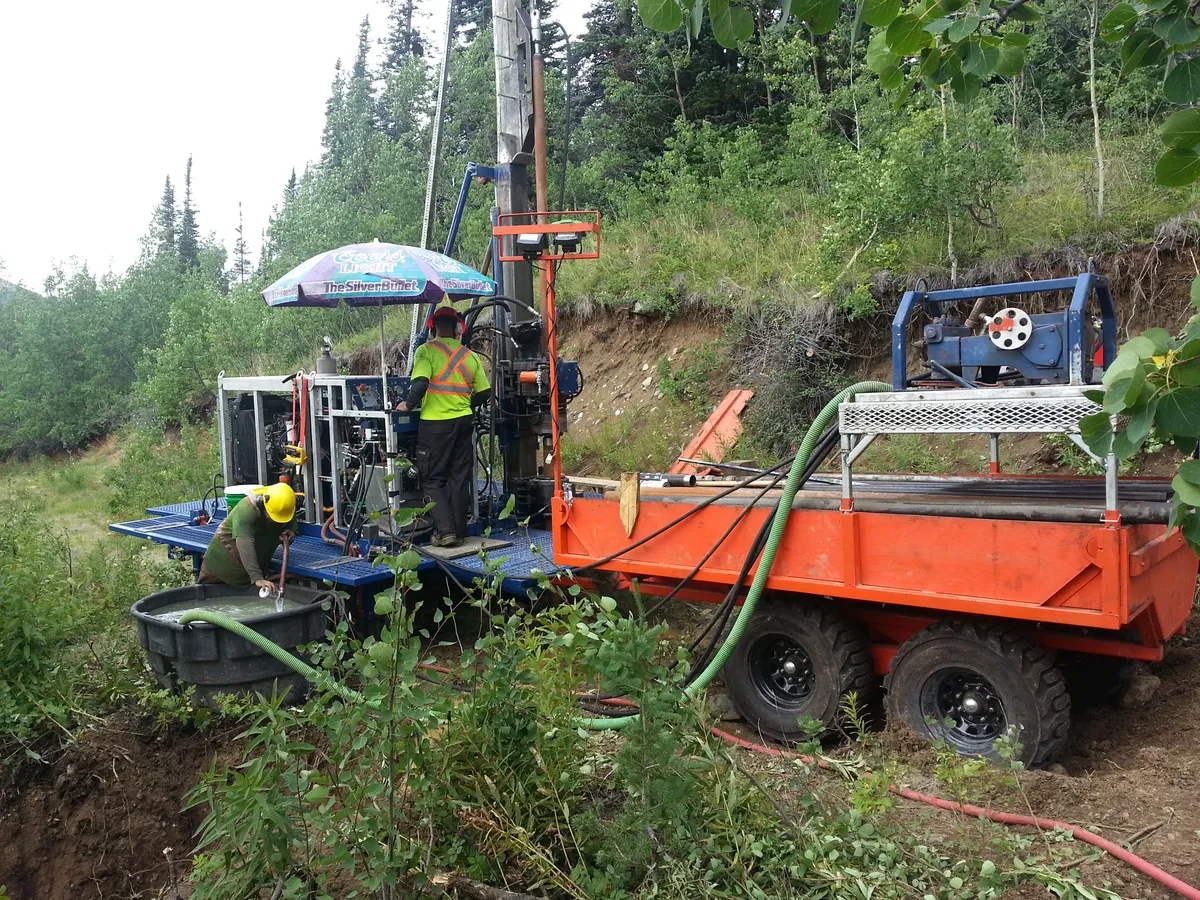

Discovery II heli-portable track drill

These unique drills can be flown into a site, much the same way a conventional heli-portable drill is flown. Once onsite and assembled, the drill can be driven onsite without the assistance of a helicopter. This drill offers the best of both worlds, being able to access sites that would be typically limited to heli-portable drilling, but with the efficiency of a track drill. Very little pad prep is required, and the drill moves are not limited by weather conditions that can limit an aircraft.

Ease of use and quick, simple tear-down and setup make this drill an incredibly safe and efficient remote-access diamond drill.

1600 m BQ capacity
1280 m NQ capacity
870 m HQ capacity
B20 drill head standard (XP head optional)
PQ capability
Folding work platforms; wood pad not required
Hydraulic levelling system
18,000 lb hydraulic recovery winch

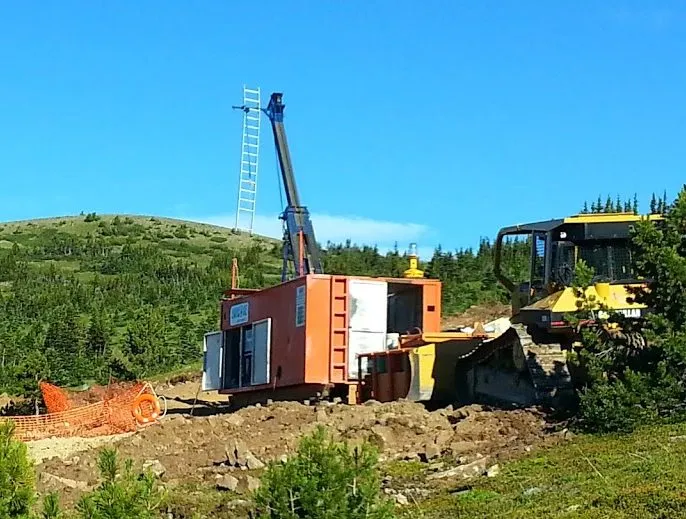

Titan deep hole skid drill

These drills were designed and built to address the need for a safe, high-performance, deep-hole drill that is highly functional in the challenging terrain and conditions encountered in B.C., Yukon, and Western Canada.

An excellent choice for your large-diameter PQ coring requirements, and a real performer with conventional NQ and HQ core barrels.

Excellent guarding and safety features make this core drill equally at home on a remote exploration site in the Yukon or a developed mine site in British Columbia.

1600 m NQ depth capacity
1100 m HQ depth capacity
700 m PQ depth capacity
Cummins 6.7L 6-cylinder turbo diesel
25,000 lb hoist
Tower: 20 ft rod pull capacity
XP drill head
Enclosed, heated skid shack

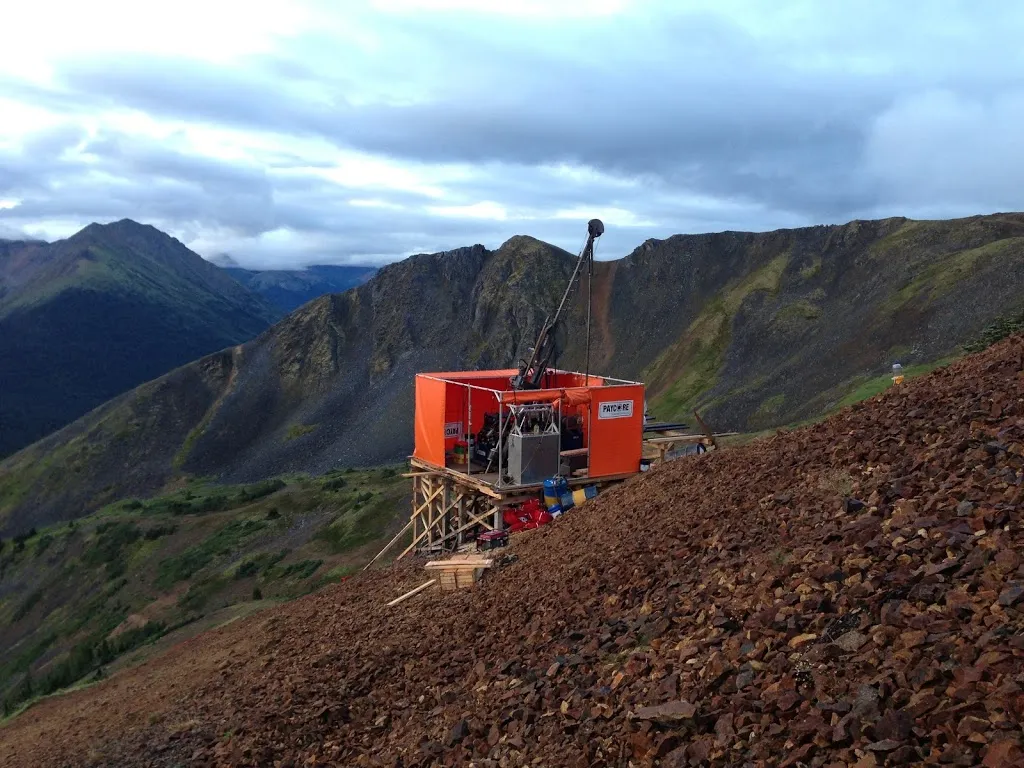

Discovery II heli-portable fly drill

When your project is remote, nothing will get you the core you need like one of our fly drills. Big performance in a lightweight, easy-to-move package. Driller and assistant safety is of the absolute highest importance, and these drills offer a full suite of safety equipment and devices.

1600 m BQ capacity
1280 m NQ capacity
870 m HQ capacity
B20 drill head standard
1550 lb maximum weight
Reconfigurable

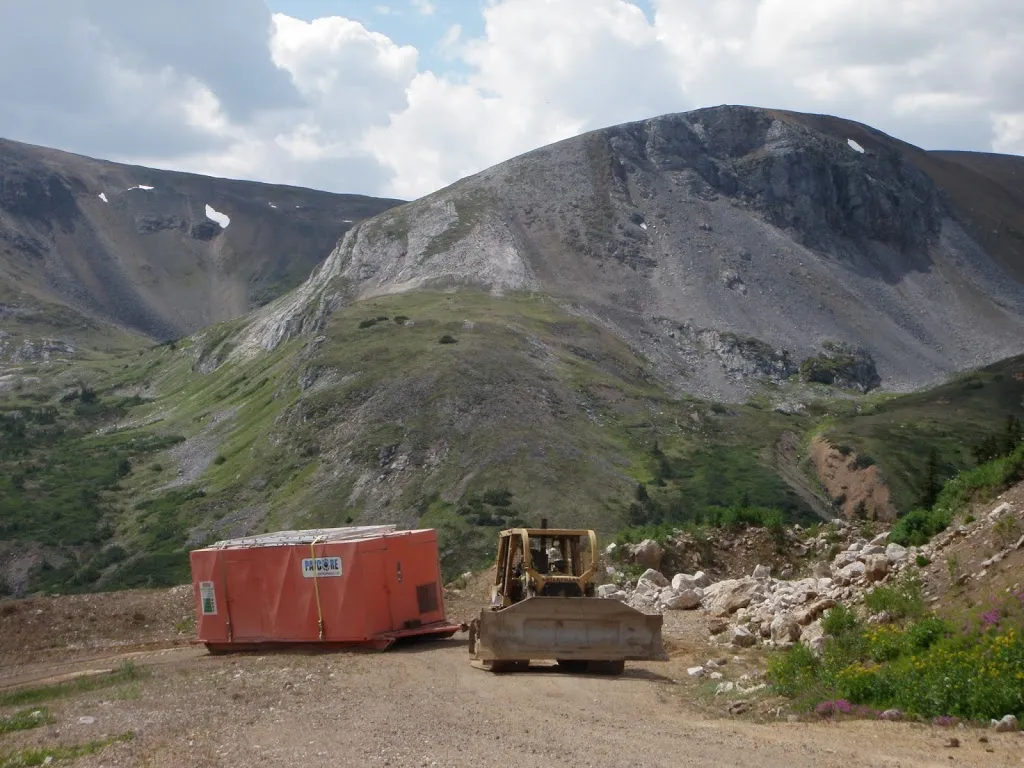

Discovery II skid drill

An all-in-one, self-contained diesel-hydraulic diamond drill ready for the remote wilderness of Western Canada. Coupled with an indirect-fired heater, it means summer productivity and safety in the dead of winter. Our lightweight design will get this drill into a challenging site quickly and safely.

1600 m BQ depth capacity
1280 m NQ depth capacity
870 m HQ depth capacity
150 m PQ depth capacity
BQ, NQ, HQ and PQ capable
B20/XP drill heads

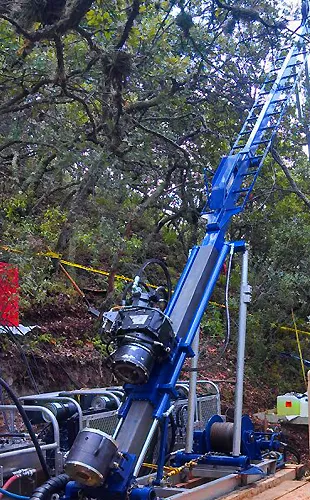

MP1000 man-portable drill

Rated depths with Quad Power:

NQ to depths of 1000 m (3300 ft)
HQ to depths of 550 m (1815 ft)

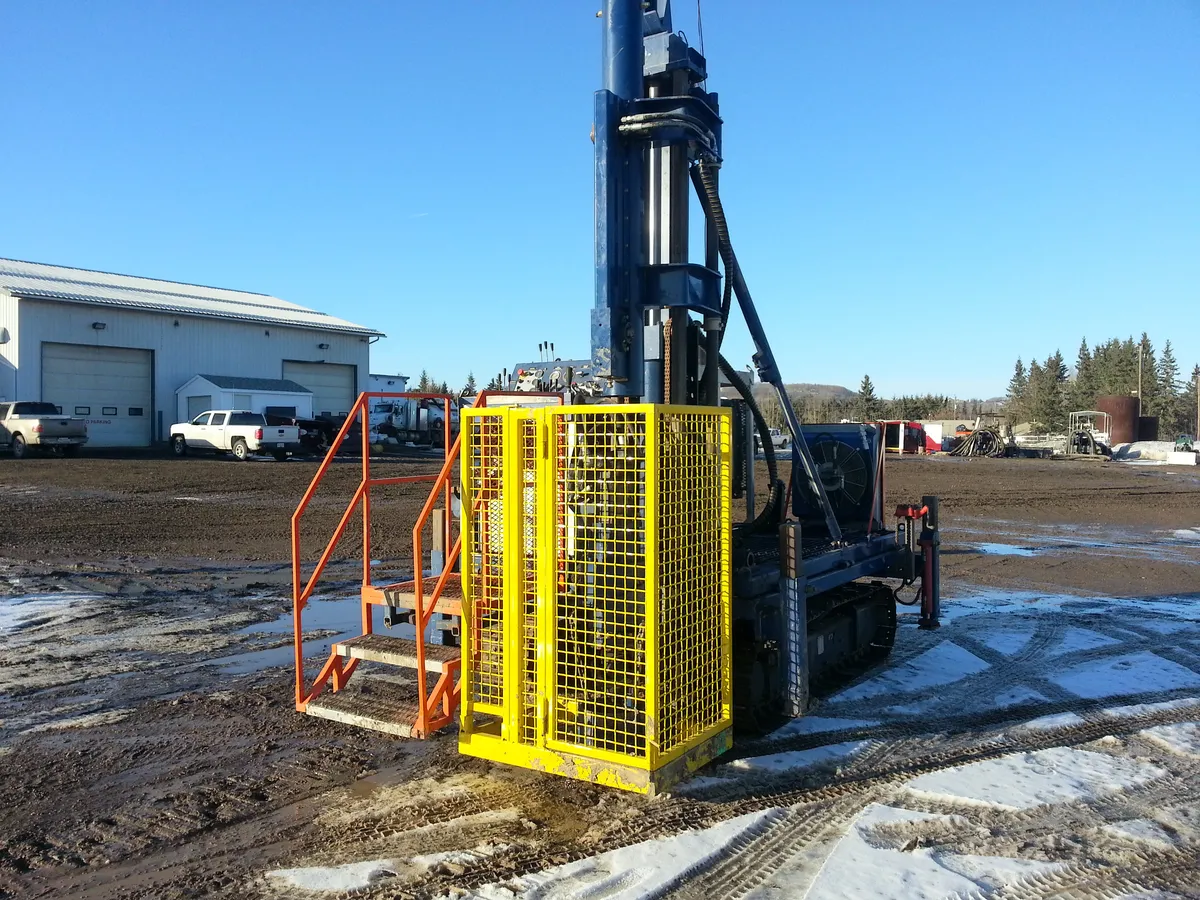

Multi-purpose track drill

Designed and built using everything we learned in the diamond drilling, geotechnical and environmental drilling fields.

Multi-purpose means this unit can take on your environmental project using solid stem auger up to 12 inches. If your geotechnical project needs accurate sampling and testing in challenging ground conditions, hollow stem auger will get you through your unstable formations. Diamond coring NQ to PQ will safely and efficiently get you the rock core you need, up to 1280 m (NQ).
